Shocker Hitch Max Black HD Air Hitch for Sway Control - 20,000 lbs.

$819.99 $769.99 On Sale
Shipping calculated at checkout.
Size: Fits 2" Receiver Tube

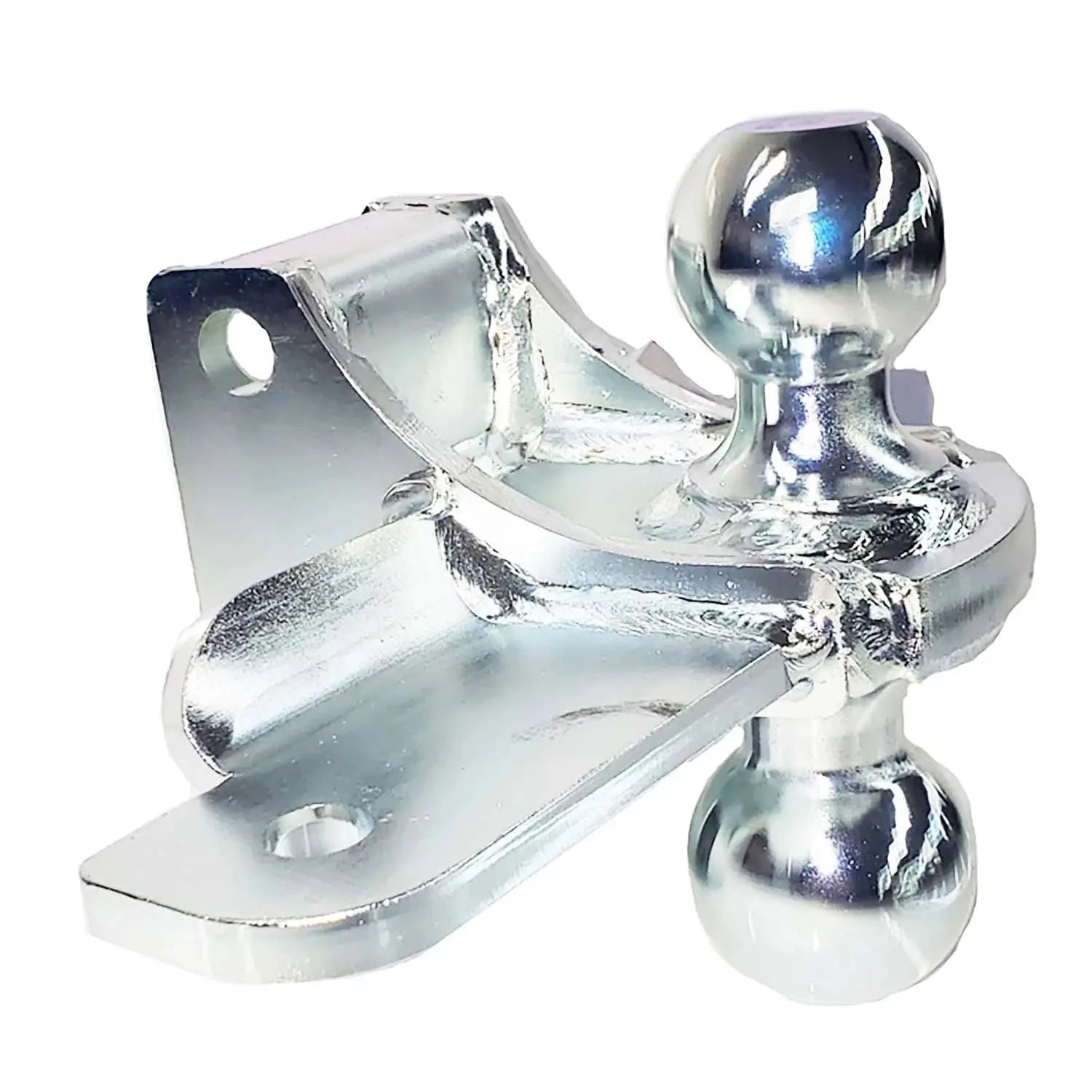

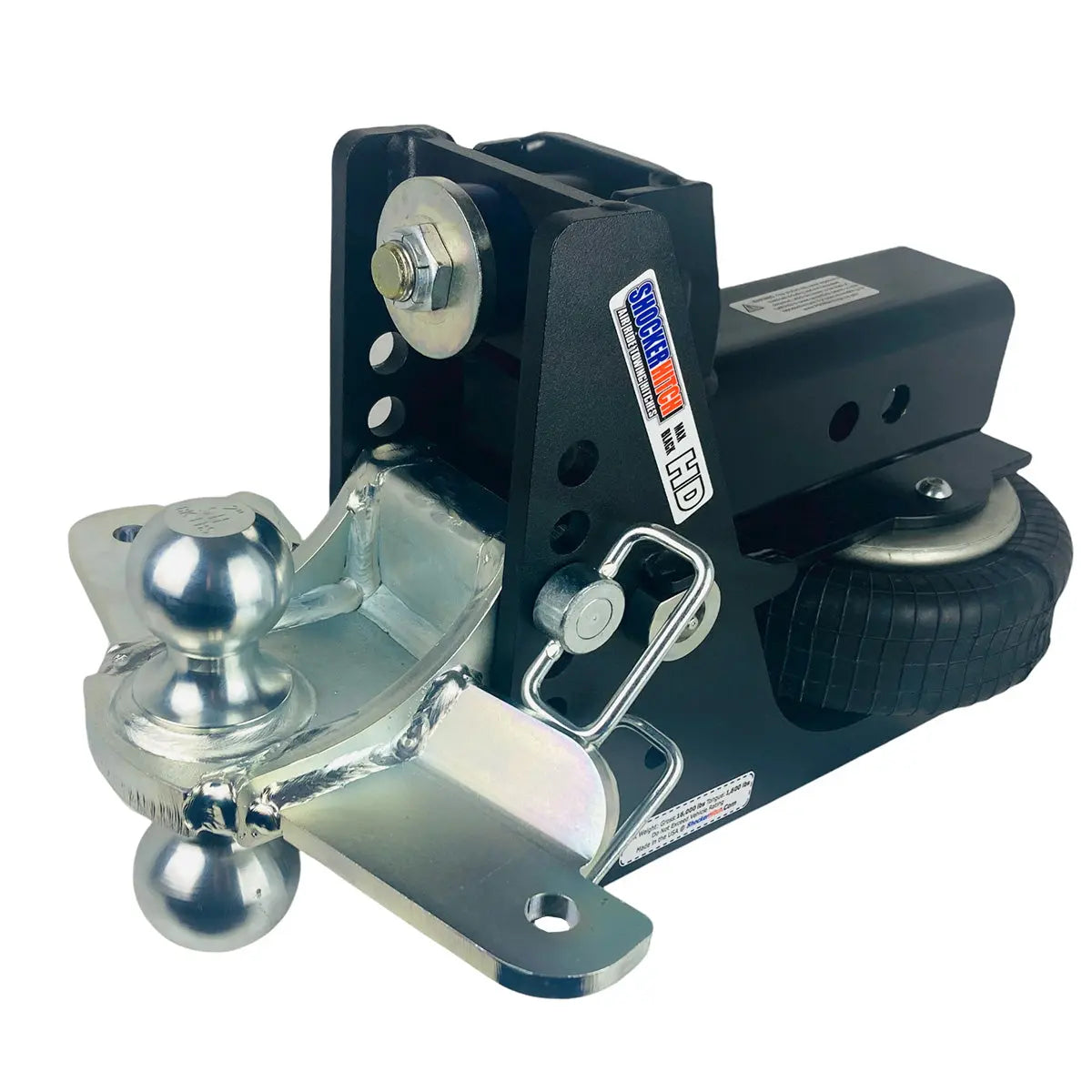

Style: Combo Sway Tab Mount w/ 2" & 2-5/16" Balls

Pickup available at Oceanside Shop

Usually ready in 2-4 days

Does your trailer have a tendency to sway side to side when going down the road? This shock absorbing air hitch provides a ball mount with welded sway tabs to mount friction sway arms to reduce sway and absorb road shock. This textured black air hitch will take all the  continual bumps, jerks, and vibrations out giving you and your trailer a smoother straighter pull. This will reduce wear and tear on driveline and frame and give you a smoother ride inside the cab! Once you add in your sway control arms your trailer will be pulling straight down the road. So get a safer, smoother towing experience with the Shocker Max Black HD 20K HD Air Hitch.
  • Complete Kit Includes: Shocker HD Max Black receiver hitch base frame assembly with built in 20K air bag & dual bump cushions, ball mount you choose and two d-handle ball mount hitch pins.

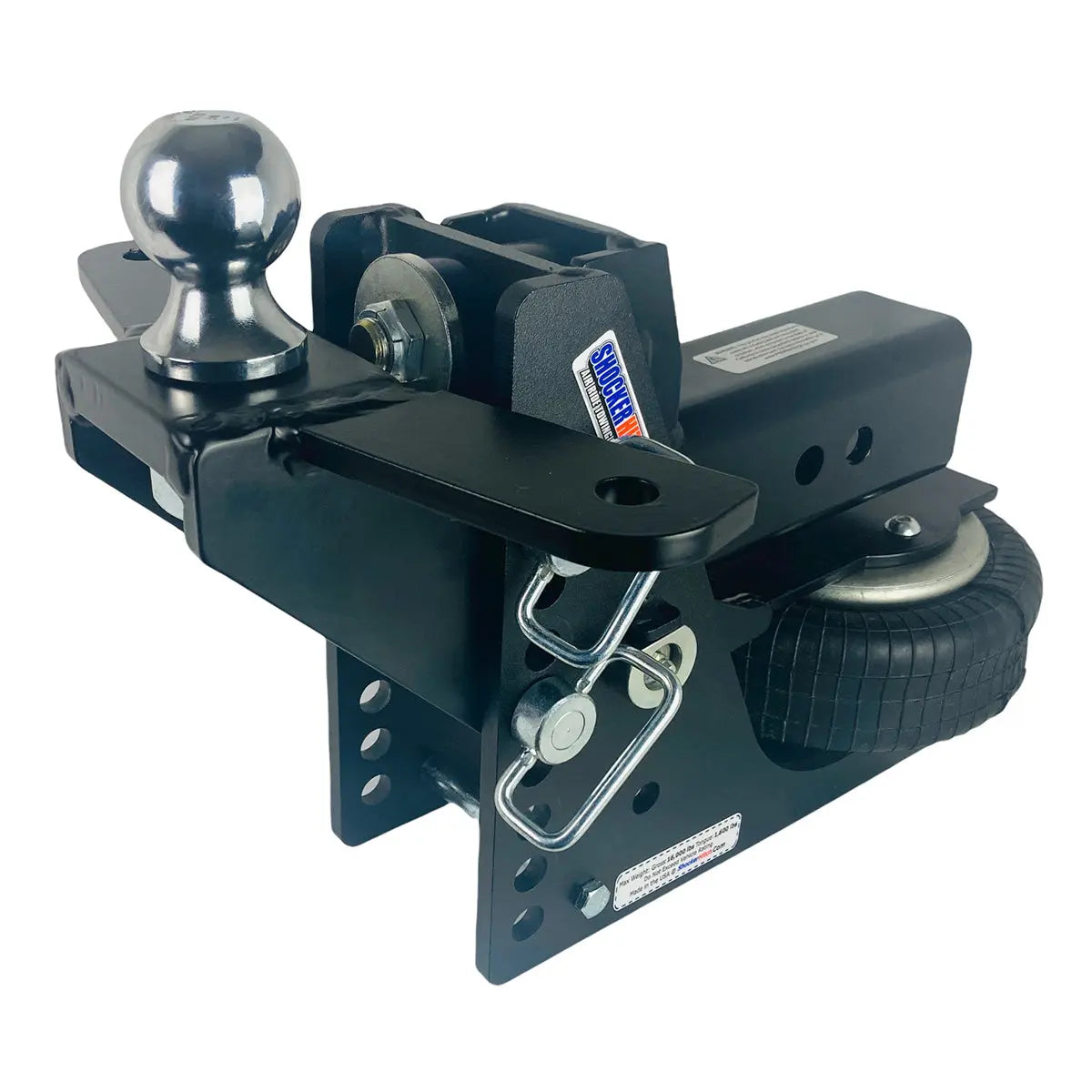

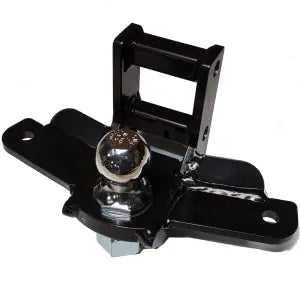

  • Welded Sway Bar Tabs: Can be use to mount shocker friction sway arms part #17200 and other sway control arms with mini ball systems.
Special Order Notes
  • 3" Shank available upon special request - Please call to order.
Shocker Hitch Mounts Drop & Rise + Tow Rating Guide for Air Hitches

– Combo Ball: 0″ Rise to 4.5″ Drop | 2-5/16″ ball rated at 20,000 lbs & 2″ ball rated at 10,000 lbs.

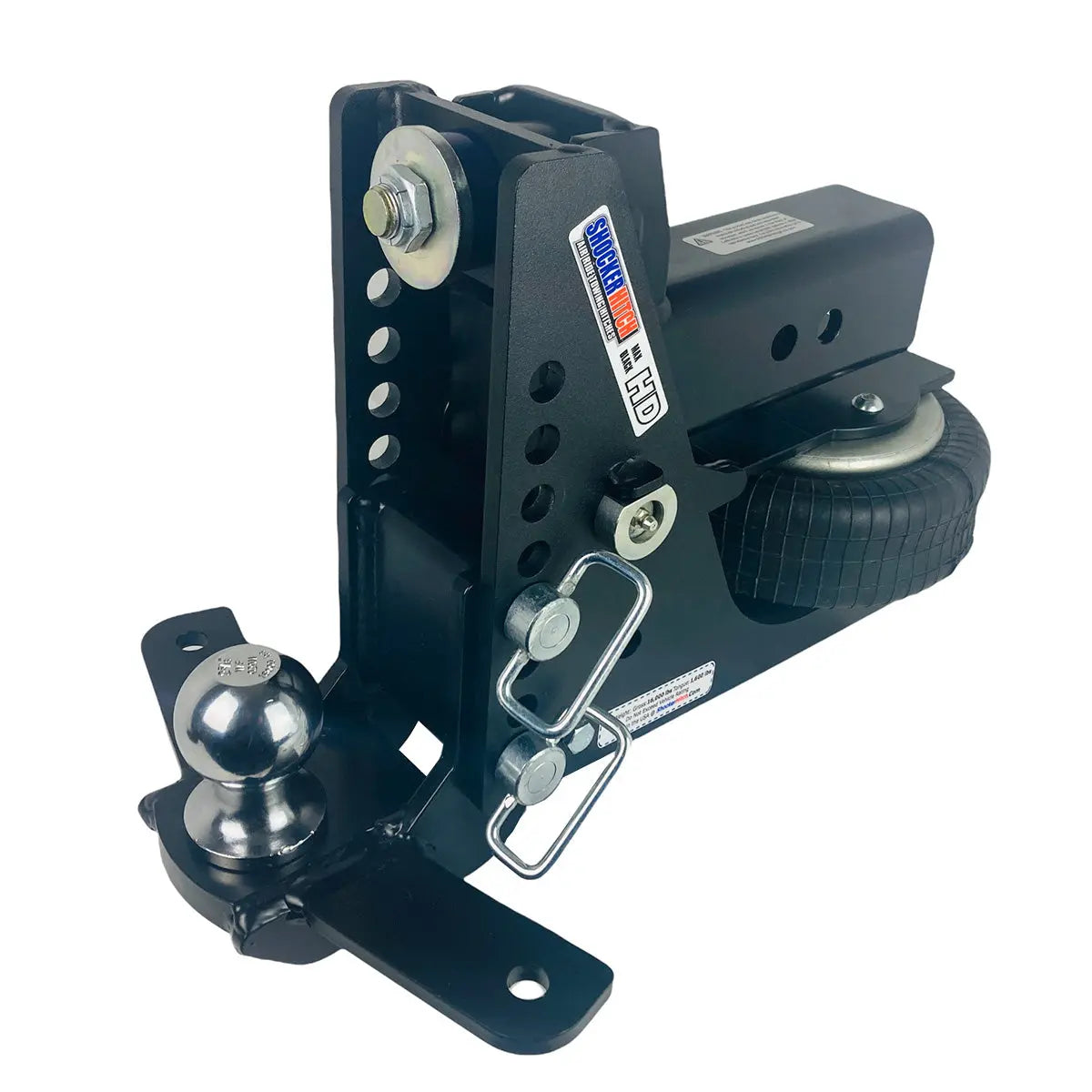

– Drop Ball: 4.5″ to 8.5″ Drop | 2-5/16″ ball rated at 20,000 lbs & 2″ ball rated at 10,000 lbs.
– Raised Ball: 2″ Rise to 2″ Drop | 2-5/16″ ball rated at 20,000 lbs & 2″ ball rated at 10,000 lbs.
– Pintle Hook: 2.5″ Rise to 6.5″ Drop | 10-Ton 20,000 lbs.
– Pintle & Ball: 2.5″ Rise to 6.5″ Drop | 8-Ton 16,000 lbs. (2″ Ball is 10,000 lbs).
– Drawbar: 0″ Rise to 4.5″ Drop | 20,000 lbs.
– Clevis Mount: 3.5″ Drop to 5.5″ Drop | 20,000 lbs.

Shipping Times

Ships in 1-2 business days

Shocker Max Black HD Air Hitch

Check out all the gnarly features that make the this blacked out air ride towing hitch such a badass beast.

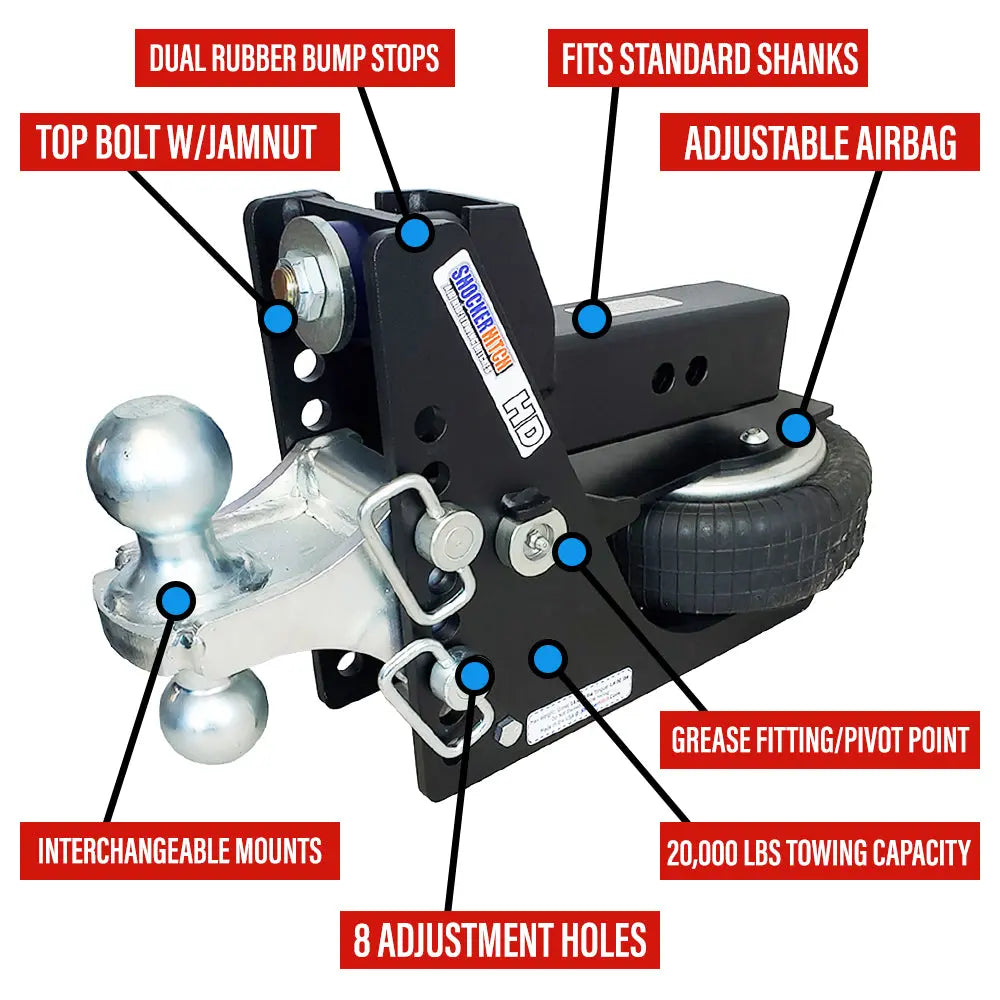

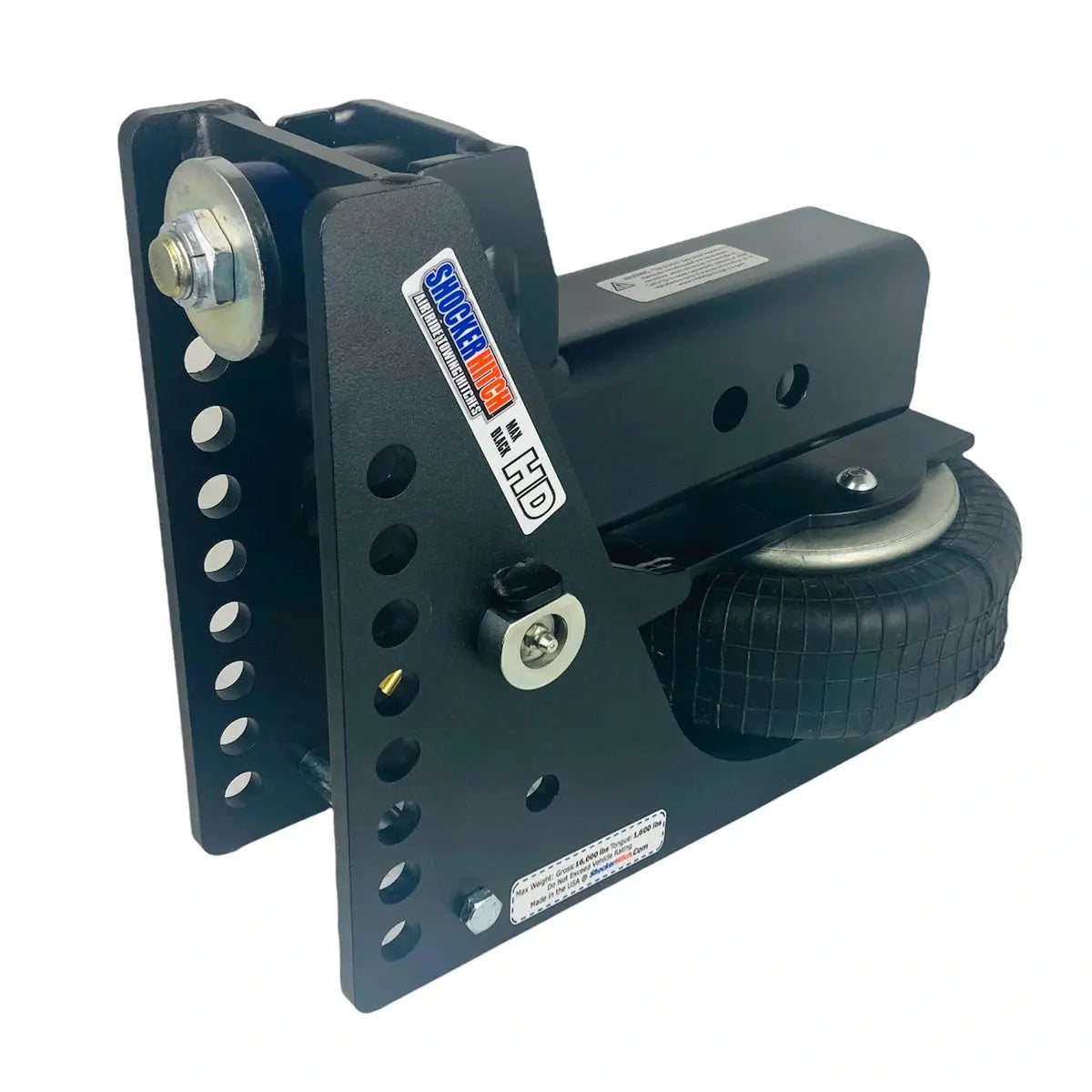

20K HD Air Spring Bag

  • The Ultimate Air Hitch for Smooth Towing: A built in HD air spring provides air ride towing technology helping to give you a smooth and safe ride by absorbing almost all the road shock.
  • Built in HD Airbag: Acts as miniature suspension system to absorb road shock, create a smooth ride & reduces tendency to trailer sway. Dual rubber bump cushions also offer additional HD performance.

HD Max Black Main Frame

  • 8 Adjustment Hole Main Frame:Offers up to2″ of rise down to 8-1/2″ of drop – Depends on mount chosen. Adjustment for combo-ball mount is 1/2″ to 4-1/2″ drop.
  • Matte Black Finish: Max Black™ Textured Matte Black Premium Powder-Coat Finish on Base Frame.
  • 20k lbs HD Tow Capacity: 20,000 lbs towing capacity and a 2,000 lbs tongue weight. (can vary by mount)

Fine Tune to Your Setup

  • Adjustable for Your Trailer: Each hitch can match your specific trailer by adjusting the air pressure in the system. Lighter loads will have less air, heavier loads will have more air.
  • 2 Pin Hole Receiver Shank: Available for 2″ & 2 1/2″ receiver hitch tubes. Shank includes two hitch pin holes for length adjustability.

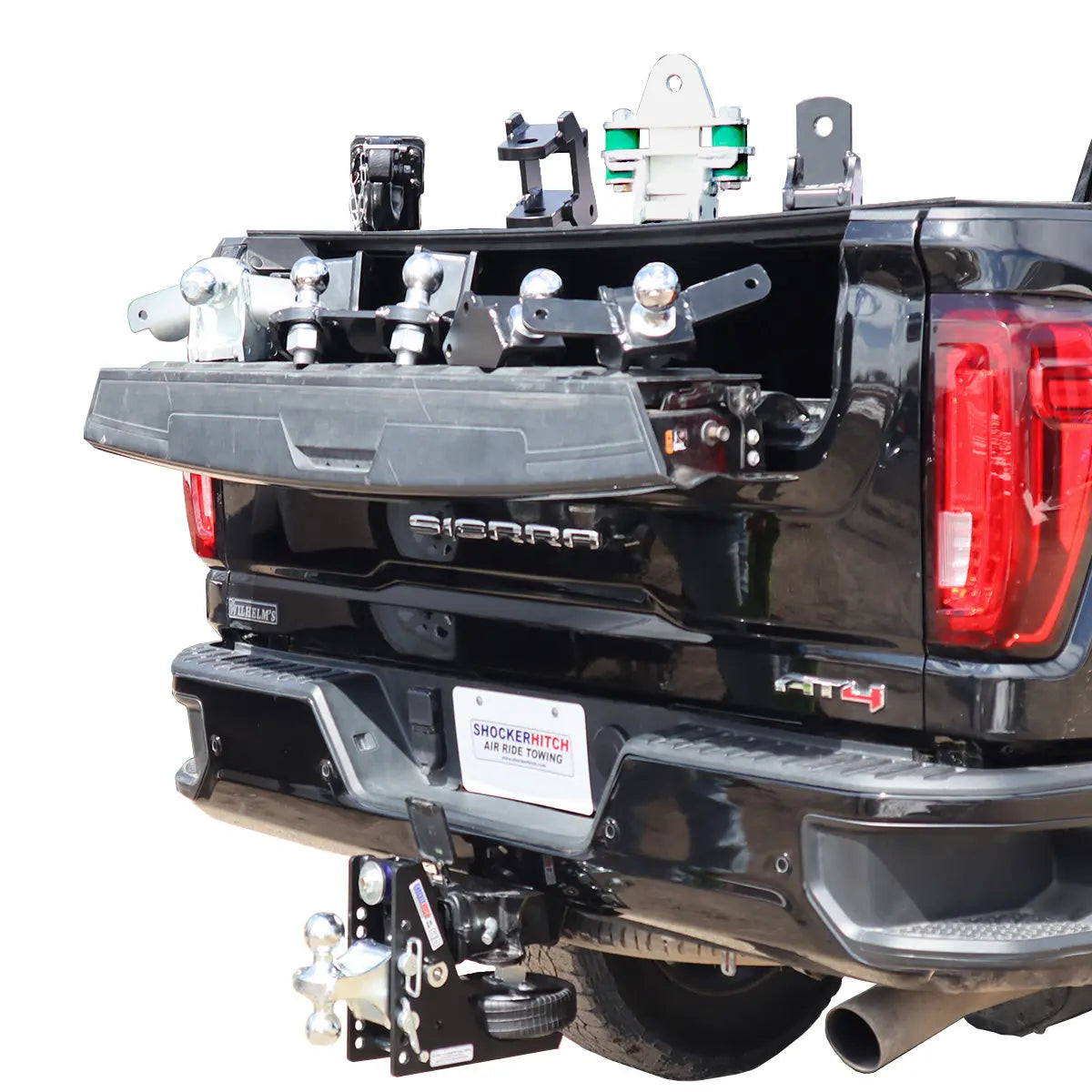

  • 10+ Ball Options:Combo, Drop, Raised, Sway tabs, Pintle, Drawbar, Clevis & more.

Smoother Safer Towing - Shocker Hitch

Add instant air ride towing to your truck and trailer when using the Shocker Max Black HD Air Hitch. Featuring 20,000 lbs. GTW, textured black impact resistant finish, over 10+ ball mounts to choose from and best of all made in the USA!

Made in The USA - Jamestown ND

Shocker hitch was founded in 2000 and has been proudly manufacturing air ride towing hitches in Arthur and now Jamestown ND. Get your Shocker Hitch today so you dont miss out on a safe and smooth towing experience!

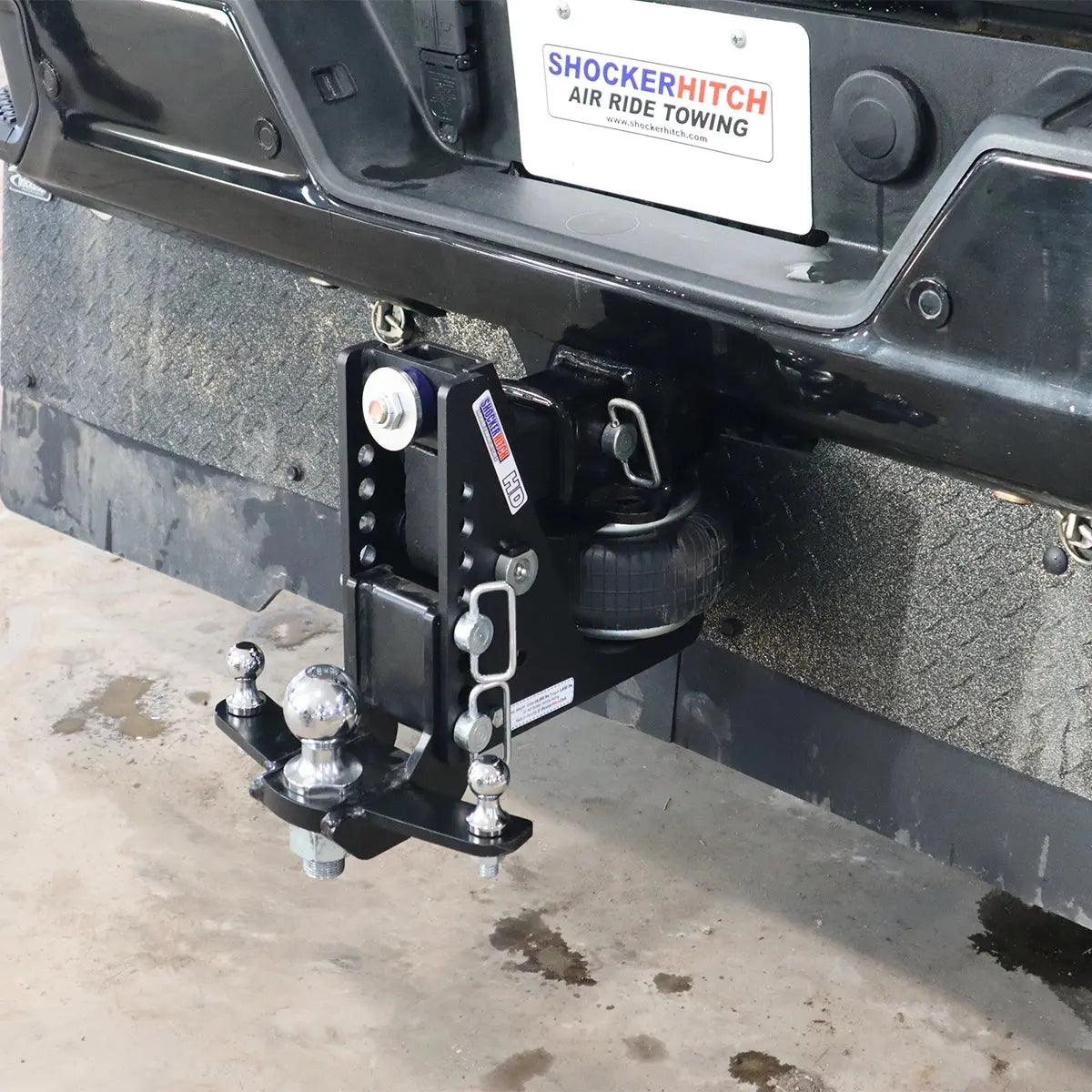

Shocker Air Hitch Install & Air Set-Up

The Shocker Air hitch has a simple installation and uses a low pressure air system. Simply slide your hitch into your vehicles receiver, hook up your trailer, air up your hitch and your all ready to hit the road! All Shocker air hitches air fully adjustable for height and different trailer weight.
