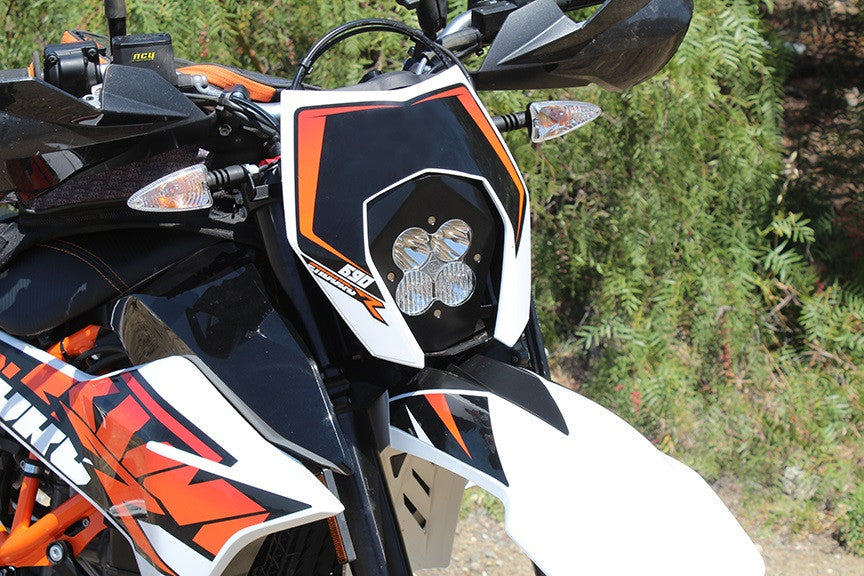

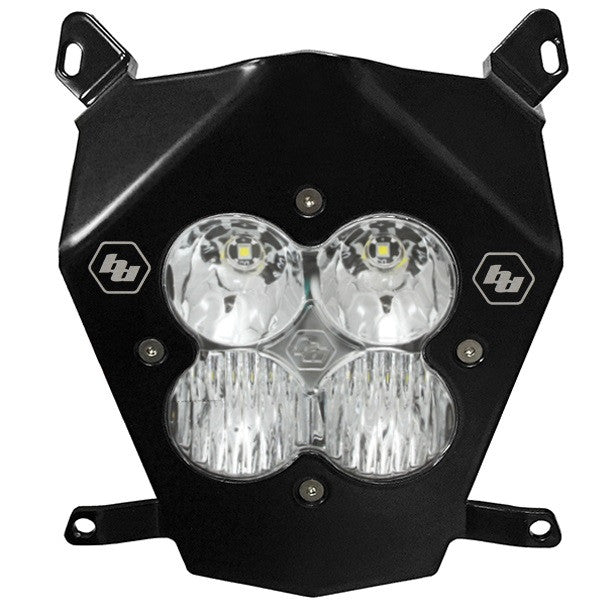

Baja Designs KTM XL Pro (D/C) Headlight Kit | 2012-2018 KTM 690 Enduro R
Pickup available at Oceanside Shop
Usually ready in 2-4 days
The Baja Designs KTM XL Pro (D/C) Headlight Kit for 2012-2018 KTM 690 Enduro R delivers exceptional lighting performance with 4,600 lumens at 40 watts. Engineered for riders seeking superior power and precision, it features a 20% dimming option and advanced Cree LEDs that extend reach by 20% without increasing power consumption. Weighing just 2.45 lbs, this lightweight race light combines durability with a distinctive Baja Designs style. Its plug-and-play design ensures straightforward installation, making it an ideal upgrade for serious KTM riders.
Satisfaction Guarantee – 30-Day Money Back Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Only LED Driven At 100 Percent
5000K Daylight – Less Driver Fatigue, Natural Color
Specifications
| Description | Driving/Combo; Clear |
| Brightness (Lumens) | 4095 |
| Bezel Material | Powder Coated Cast Aluminum |
| Beam Pattern | Driving/Combo |
| Average Rated Life (hr.) | 49,930 |
| Amperage Rating (A) | 3 |
| Housing Color | Black |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Lens Color | Clear |
| Product Type | XL Pro LED Light Pod |
| Overvoltage Protection | Built-In |
| Mounting Hardware Material | Stainless Steel |
| Mounting Hardware Included | Yes |
| Lighting Type | Forward Projecting |
| Lighting Technology | Cree XP-L LED |
| Lighting Quantity | 4 |
| Lighting Modes | High Beam/Dimming Feature (20%) |
| Light Quantity | 1 |
| Lens Material | Hardcoated Polycarbonate |
| Universal or Specific | Universal |
| Wattage (W) | 41.400 |
| Wiring Harness Included | No |
Dimensions
| Weight (lbs.) | 2.450 |
| Height (in.) | 4.430 |
| Depth (in.) | 3.650 |
| Length (in.) | 4.430 |
Standards & Compliance
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
