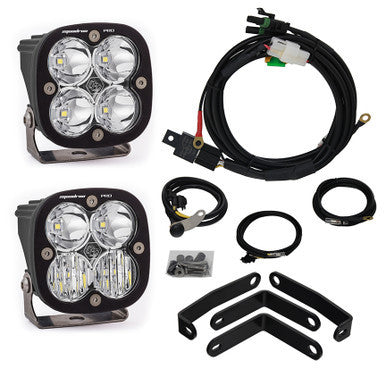

Illuminate your rides with the Baja Designs BMW Squadron Pro Headlight Kit, designed specifically for 2013-2018 BMW R1200GS models. Featuring two high-performance Squadron Pro LED lights delivering a combined 9,800 lumens, this kit offers exceptional visibility. One light uses a Spot lens for focused distance, while the other employs a Driving/Combo lens to provide smooth near and midfield coverage, ensuring optimal illumination for both low and high-speed riding conditions. Enhance safety and confidence on every adventure with this expertly engineered lighting solution.
Satisfaction Guarantee – 30-Day Money Back Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Only LED Driven At 100 Percent
5000K Daylight – Less Driver Fatigue, Natural Color
Included with kit:
SKU: 490001
Specifications
| Lens Color |
Clear |
| Lens Material |
Hardcoated Polycarbonate |
| Light Quantity |
1 |
| Lighting Modes |
Beam |
| Lighting Quantity |
4 |
| Lighting Technology |
Cree LED (2 Types) |
| Lighting Type |
Forward Projecting |
| Mounting Hardware Included |
Yes |
| Mounting Hardware Material |
Stainless Steel |
| Overvoltage Protection |
Built-In |
| Product Type |
Squadron Pro LED Light Pod |
| Wattage (W) |
41.400 |
| Wiring Harness Included |
No |
| Amperage Rating (A) |
3 |
| Average Rated Life (hr.) |
49,930 |
| Beam Pattern |
Spot |
| Bezel Material |
Powder Coated Cast Aluminum |
| Brightness (Lumens) |
4095 |
| Description |
Spot; Clear |
| Housing Color |
Black |
| Housing Material |
Hard Anodized and Powder Coated Cast Aluminum |
Standards & Compliance
| Standards/Compliance (Durability) |
Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) |
IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) |
IP69K (Waterproof up to 9ft & Pressure Washable) |
Dimensions
| Depth (in.) |
2.770 |
| Height (in.) |
3.070 |
| Length (in.) |
3.070 |
| Weight (lbs.) |
0.750 |
SKU: 490003
Specifications
| Housing Material |
Hard Anodized and Powder Coated Cast Aluminum |
| Lens Color |
Clear |
| Lens Material |
Hardcoated Polycarbonate |
| Light Quantity |
1 |
| Lighting Modes |
Beam |
| Lighting Quantity |
4 |
| Lighting Technology |
Cree LED (2 Types) |
| Lighting Type |
Forward Projecting |
| Mounting Hardware Included |
Yes |
| Mounting Hardware Material |
Stainless Steel |
| Overvoltage Protection |
Built-In |
| Product Type |
Squadron Pro LED Light Pod |
| Wattage (W) |
41.400 |
| Wiring Harness Included |
No |
| Amperage Rating (A) |
3 |
| Average Rated Life (hr.) |
49,930 |
| Beam Pattern |
Driving/Combo |
| Bezel Material |
Powder Coated Cast Aluminum |
| Brightness (Lumens) |
4095 |
| Description |
Driving/Combo; Clear |
| Housing Color |
Black |
Standards & Compliance
| Standards/Compliance (Durability) |
Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) |
IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) |
IP69K (Waterproof up to 9ft & Pressure Washable) |
Dimensions
| Depth (in.) |
2.770 |
| Height (in.) |
3.070 |
| Length (in.) |
3.070 |
| Weight (lbs.) |
0.750 |
